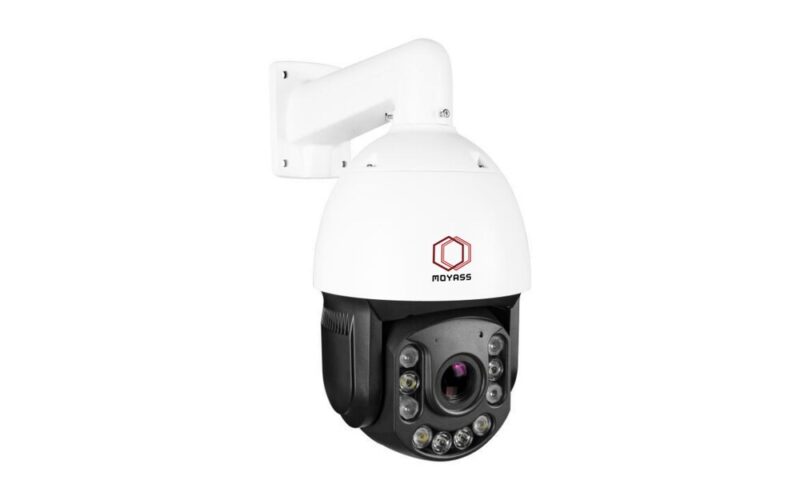

MY-SD688 25x PTZ Speed Dome Camera

MY-SD688 is an 8 MP PTZ speed dome with 25x optical zoom, built on a 1/2.8″ Sony IMX415 sensor with a SigmaStar SSC378QE SoC. Hybrid IR/white-light illumination and triple streaming make it the patrol-and-track camera for large sites.

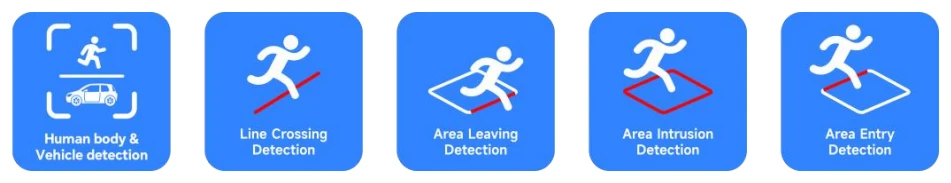

Smart detection

• Human & vehicle detection — classifies people and vehicles in frame rather than reacting to any motion.
• Line crossing — triggers when a target crosses a defined tripwire.
• Area leaving — triggers when a target exits a defined zone.
• Area intrusion — triggers when a target enters a protected zone.
• Area entry — logs entry events into a defined zone.

Note: enabling the custom third stream disables face detection and perimeter protection.

Application scenarios

• Wide-area plant and campus patrol
• Logistics yards and container terminals
• Public plazas and open parking
• Roadways and intersections
