MY1033 Waterproof 8-inch Face Recognition Terminal
Face, card and PIN verification for entrances and exits, IP66-rated.
MY1033 is a waterproof 8-inch face recognition terminal for identity verification at entrances and exits. It supports face recognition, RFID card and PIN verification, applying AI algorithms to real access-control scenarios.
On the software side it runs Linux with an industry-leading face recognition algorithm for stable, reliable, fast and accurate recognition. On the hardware side it uses mainstream SoCs and components from first-tier suppliers for dependable overall quality. It is widely used at the entrances of residential communities, schools, industrial parks and office buildings, and comes in a pedestal version and a wall-mount version.

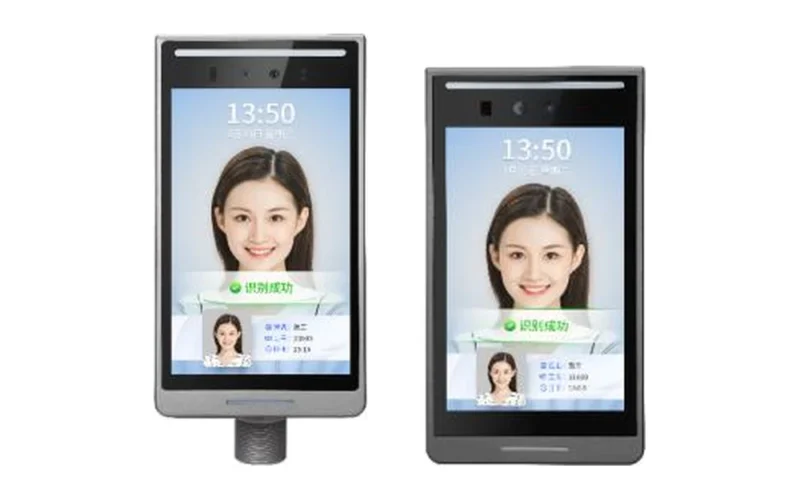

Photo above: pedestal version (left) and wall-mount version (right).
Features
- Binocular liveness detection
- Operating temperature: -20 °C to 60 °C
- Ultra-slim body with refined industrial design
- Linux operating system for system stability
- Mean time between failures (MTBF) over 50,000 h
- Tracks and exposes moving faces correctly even under strong backlight
- Up to 24,000+ faces in the comparison library and 69,000 recognition records
- Expandable with cloud video intercom
- Register personnel, configure the device and look up records on the front touch screen
- Rich hardware interfaces: WG, RJ45, USB, switch I/O, RS485
- 8-inch full-viewing-angle IPS HD screen with no smearing or lag
- Proprietary face recognition algorithm recognizes faces accurately in under 0.3 s
- Rich protocol support: TCP/IP, RTSP, HTTP, DHCP and MQTT on Windows, Linux and other platforms
Wiring: pedestal version
| No. | Name | Qty | Description |
| 1 | Network port | 1 | RJ45 |
| 2 | Power | 1 | DC 12V IN |
| 3 | USB | 1 | USB 2.0 |
| 4 | Switch output | 1 | Switch output A+ / B- |
| 5 | Wiegand input | 1 | 1 D0 2 D1 |
| 6 | Wiegand output | 1 | 1 VCC 12V 2 GND 3 D0 4 D1 |
| 7 | RS485 | 1 | 1 485- 2 485+ |
Wiring: wall-mount version
| No. | Name | Wire | Use |
| 1 | GND | Black/white: GND | Power negative |
| 2 | WG IN WG OUT |
Orange: WGI_D0, pink: WGI_D1 Brown: WGO_D0, yellow-green: WGO_D1 |
WG IN: connects a Wiegand card reader WG OUT: outputs to an external access controller |
| 3 | ALARM IN | Yellow: FIRE_ALM | External dry-contact fire alarm |
| 4 | BELL | Blue: BELL | External dry-contact doorbell button |
| 5 | SENSOR | Purple: DS | External door sensor |
| 6 | OPEN | Green: OPEN | External exit (door-open) button |
| 7 | LOCK | Blue: NC, green: COM, grey: NO | Door-open signal output |
| 8 | RS485 | Red: 485+, black: 485- | Function expansion |
| 9 | Audio out | White: VO+, blue: VO- | Standard audio output |
| 10 | Wiegand power | Red: WG_12V, black: GND | Power for Wiegand peripherals |
Application scenarios
- Residential community entrances
- School and campus gates
- Industrial park entrances
- Office building lobbies and doors
