Prodec Acoustic Booth

×

What it is

The Prodec Acoustic Booth is a soundproof, private space you can move and take apart. It is used in offices, instrument training, education, live broadcasting and more.

The shell is built like a high-speed-rail carriage: a frame of aerospace-grade aluminum profiles, aluminum honeycomb panels and tempered glass. Every aluminum part is fireproof, odorless and stable; walls and ceiling are lined with acoustic PET, the floor with nylon carpet.

The range — four sizes, S to XL

Every size ships in three series — PC, PR and PE. PC and PR share the same footprint; PE has its own. All footprints are in mm, W × D × H.

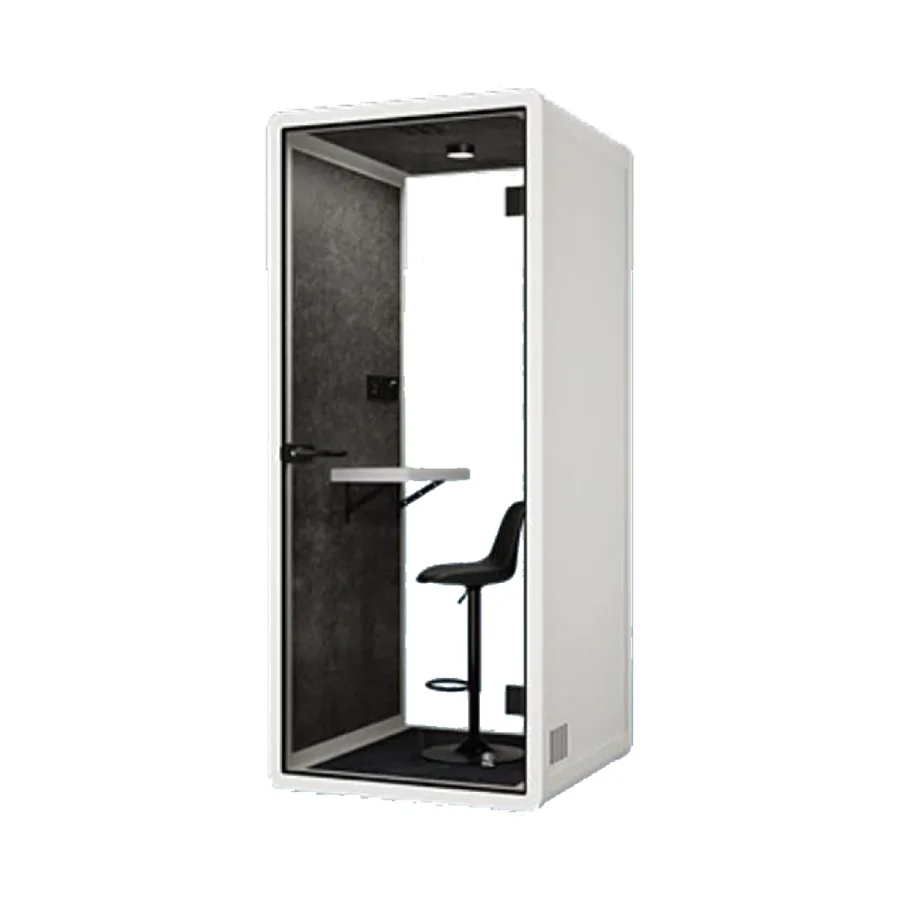

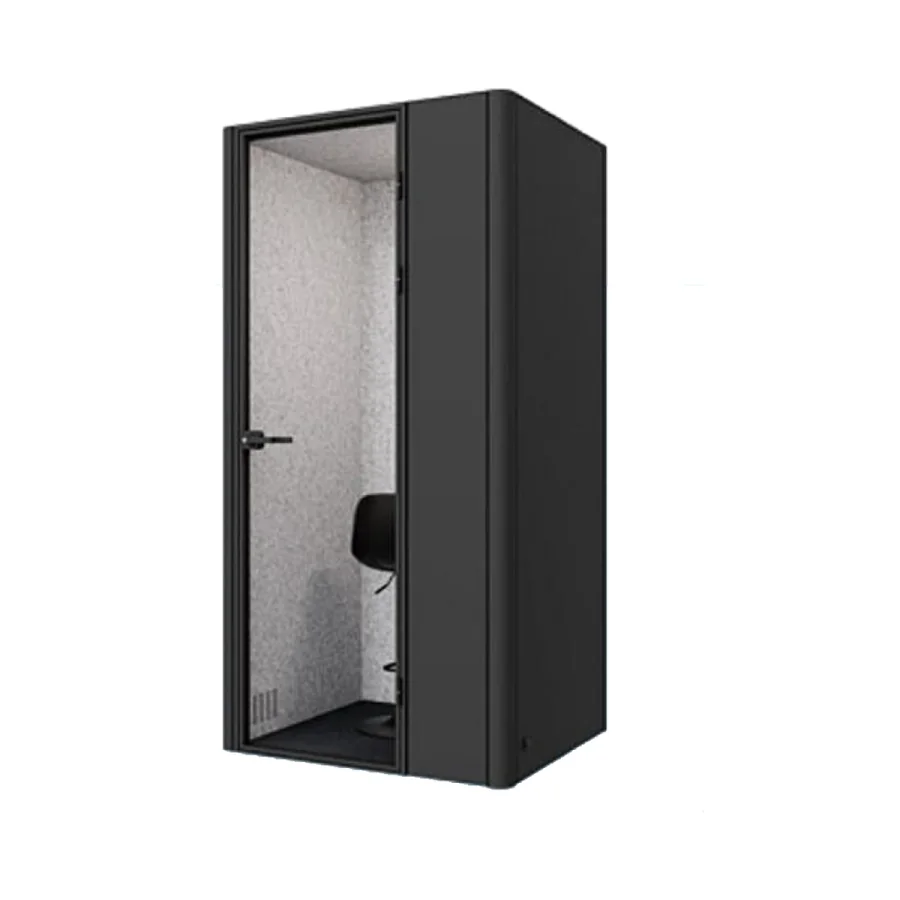

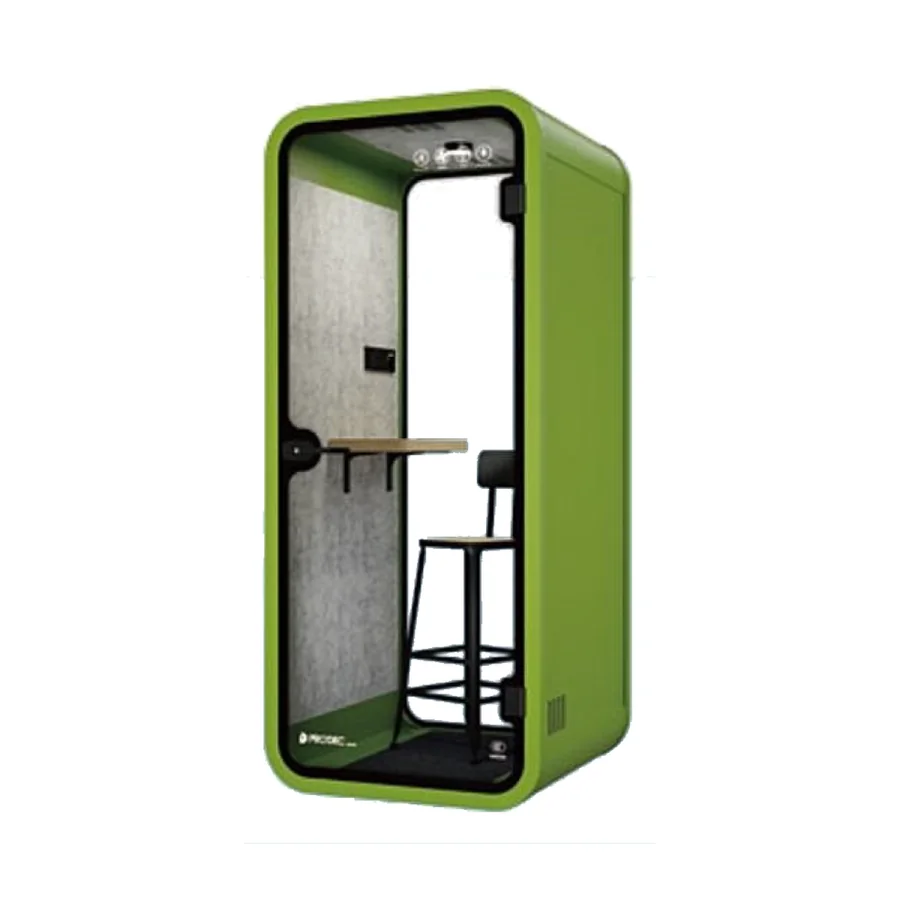

Model S — Single Pod · 1 person

A focus booth for one — calls, interviews and heads-down work.

Best for: Phone · Interview · Meeting pod · Office · Live streaming

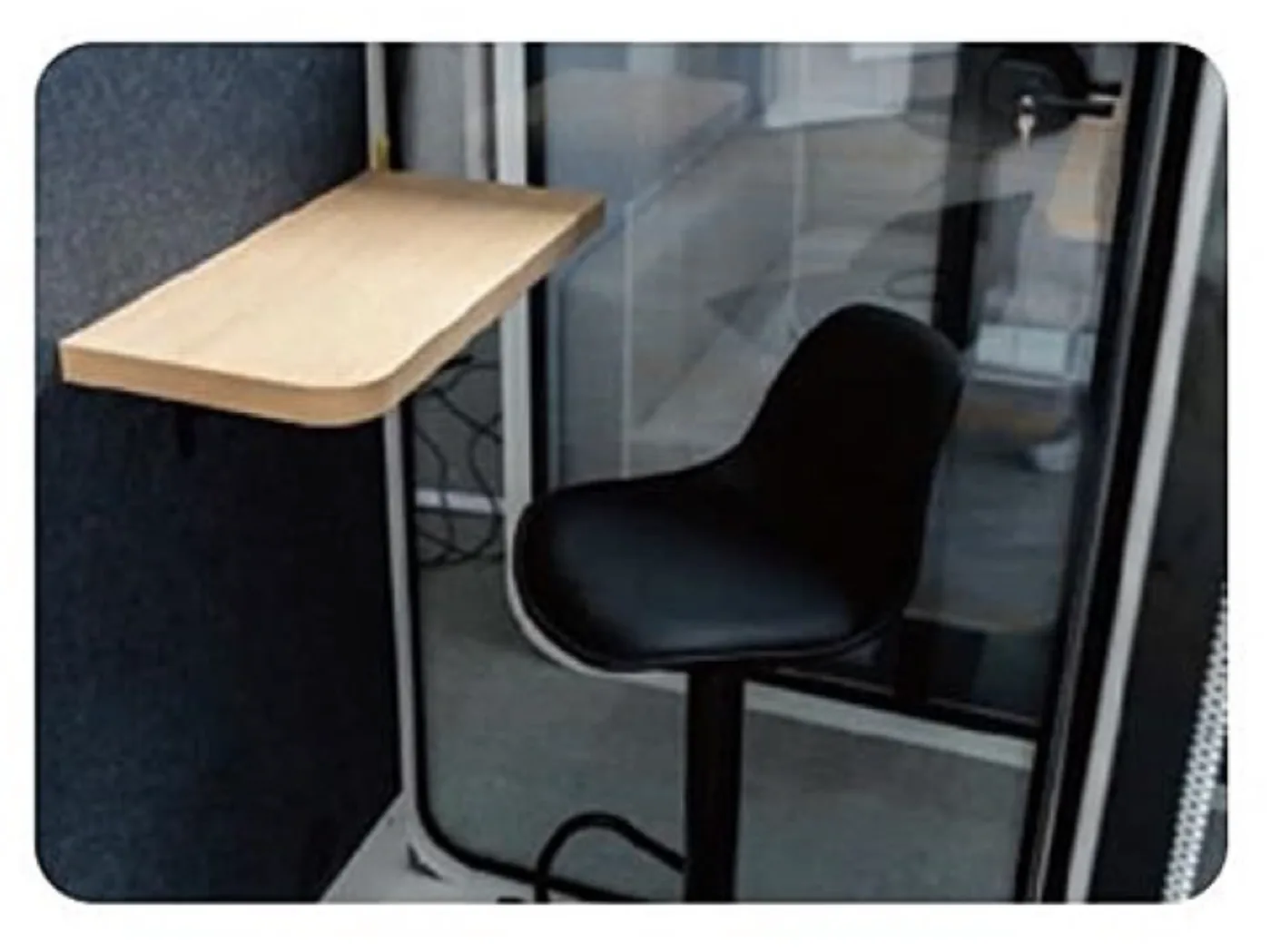

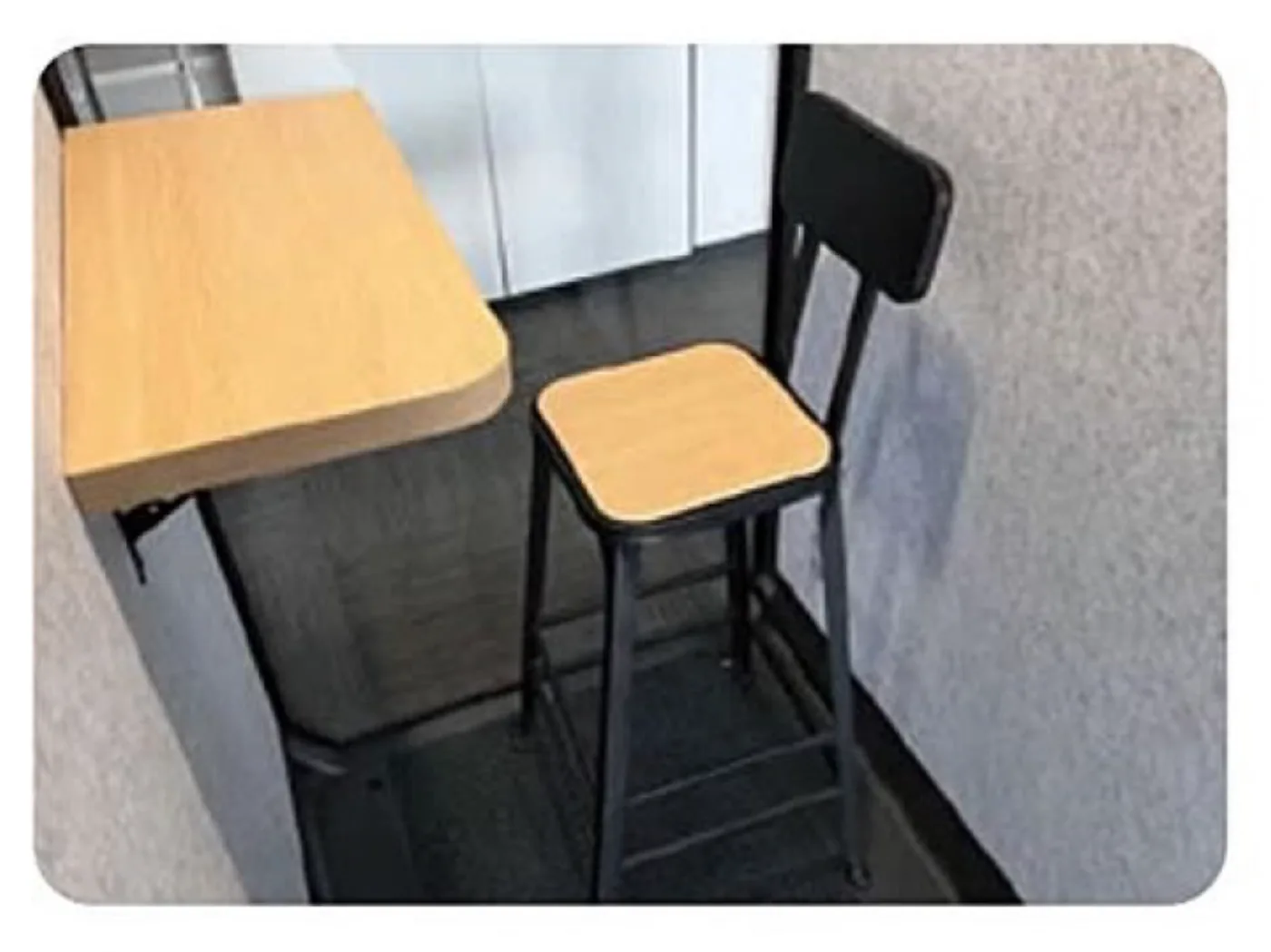

Furniture: Wall shelf + barstool · Wall shelf + leather chair

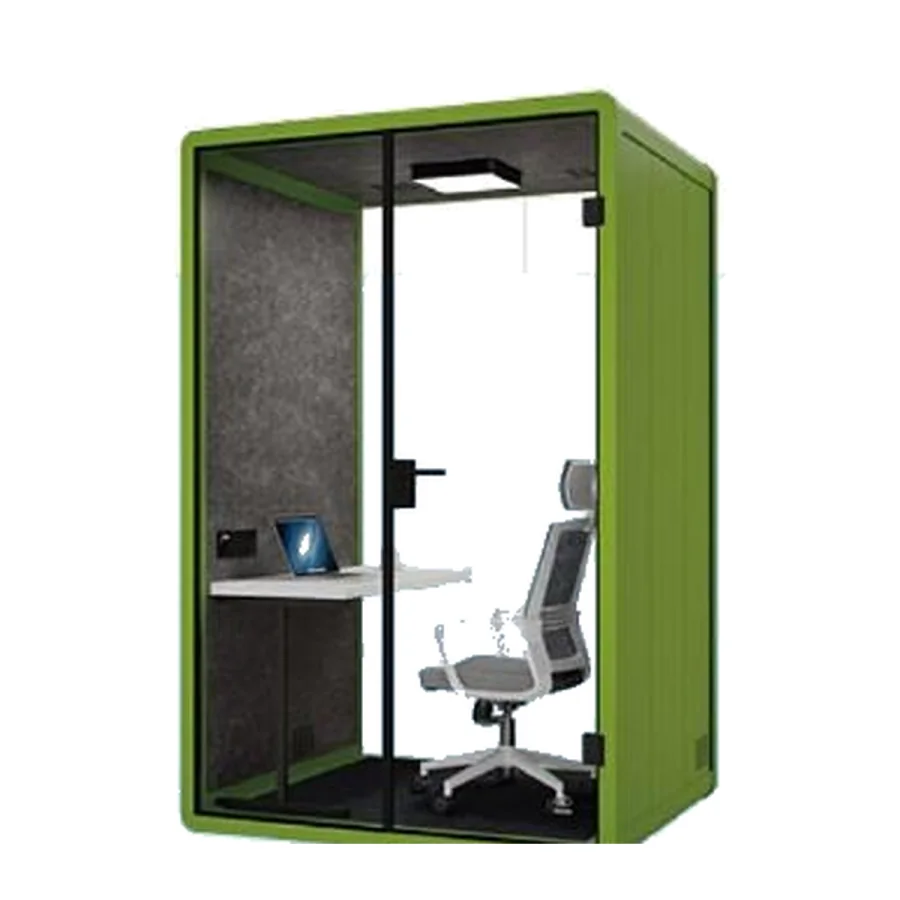

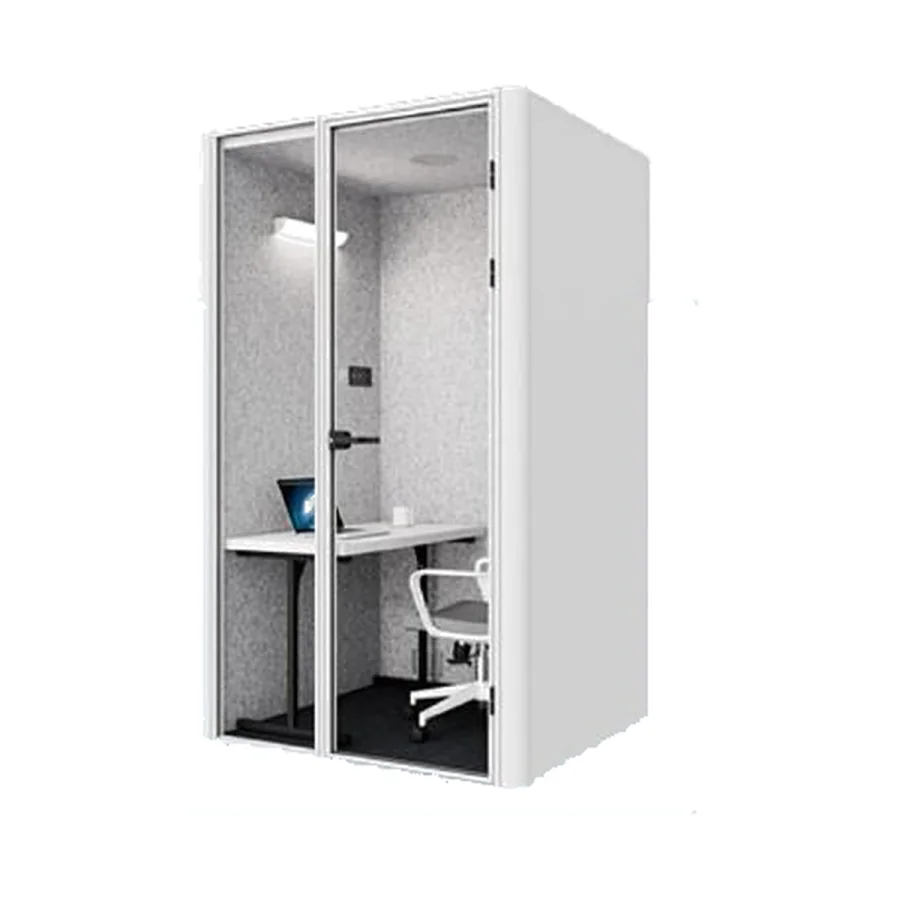

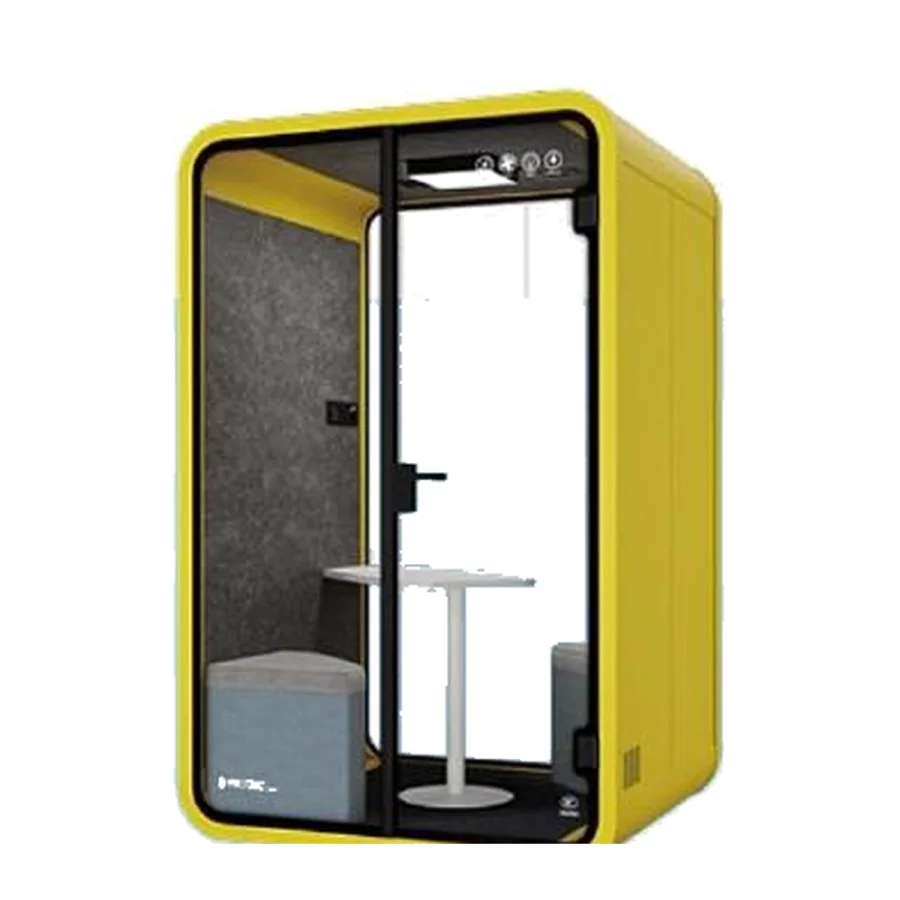

Model M — Meeting Pod · 2 people

A quiet pod for two — meetings, study, exams and streaming.

Best for: Office · Chatting · Live streaming · Meeting · Exam · Study

Furniture: Bar table + 2 barstools · Desk + 2 sofa stools · Office desk + chair

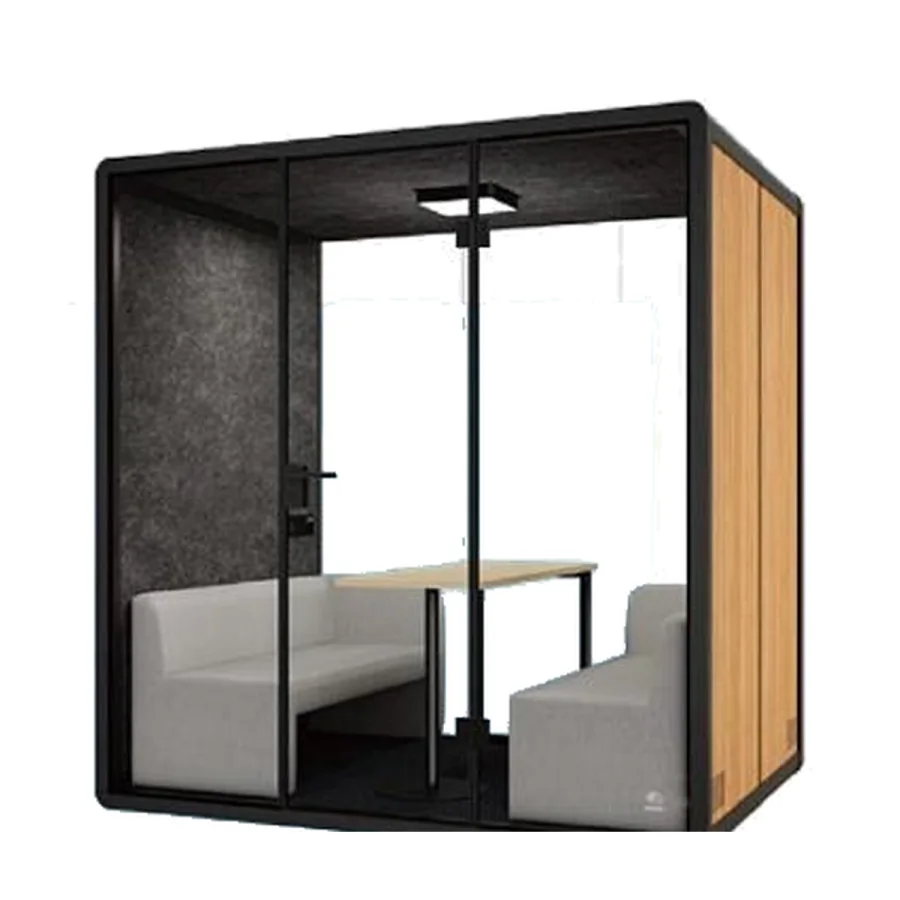

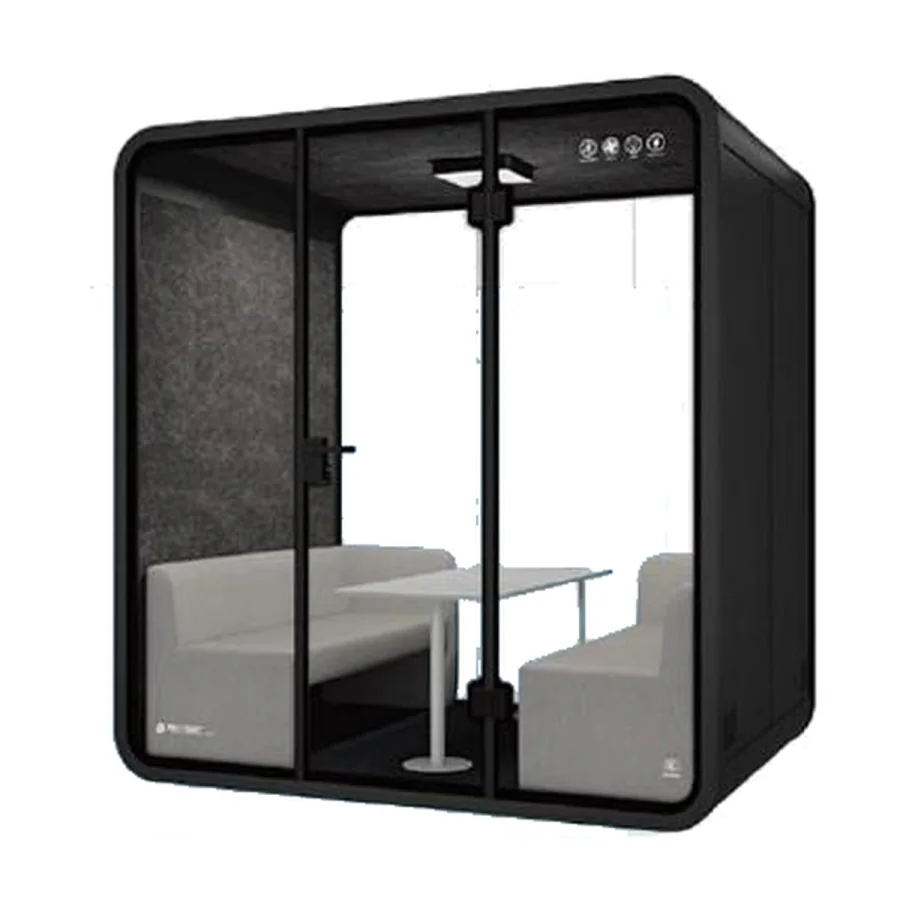

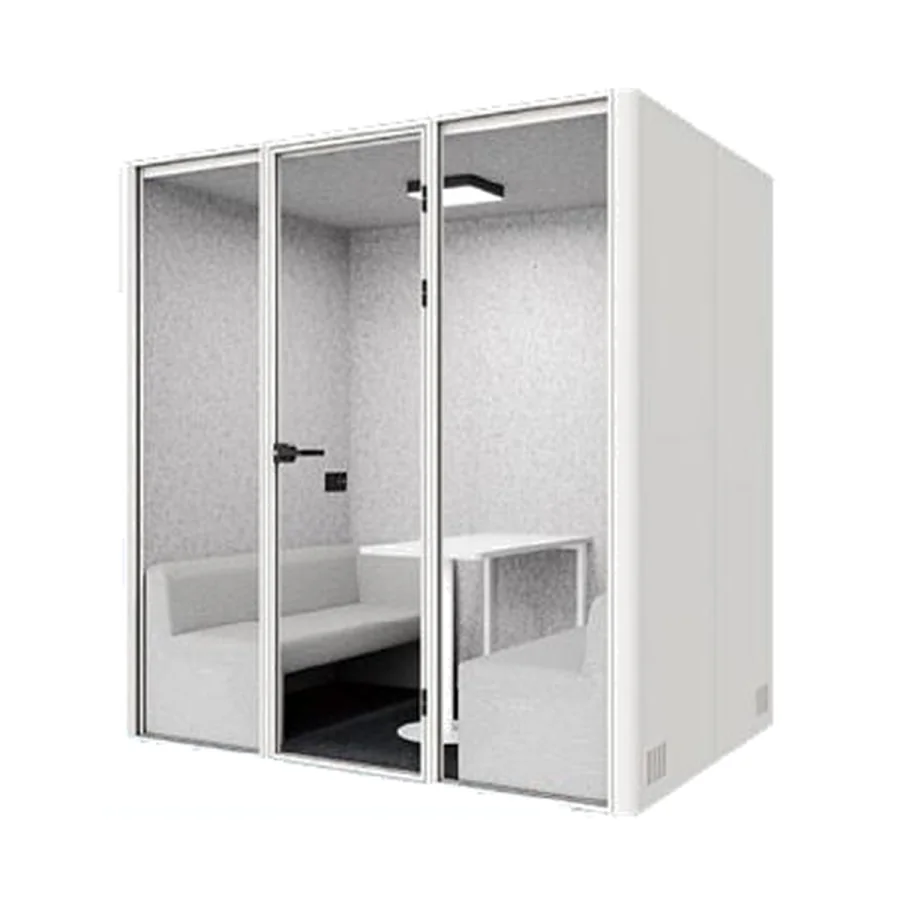

Model L — Team Room · 4 people

A room for the whole team — from recording to drum practice.

Best for: Chatting · Office · Recording · Drum practice · Live streaming · Smoking · Exam · Sleeping

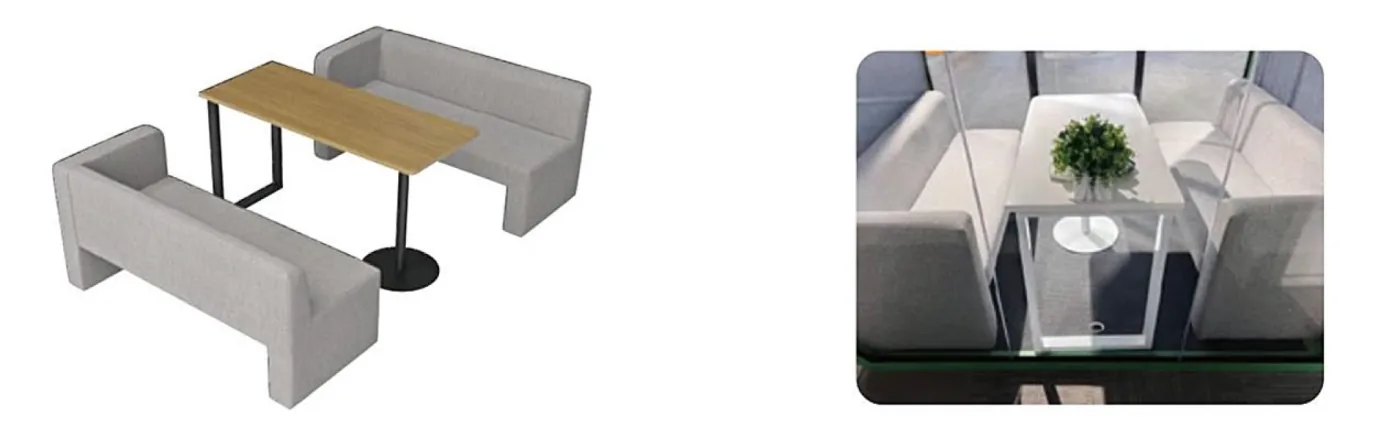

Furniture: Table + 2 sofas (shown installed)

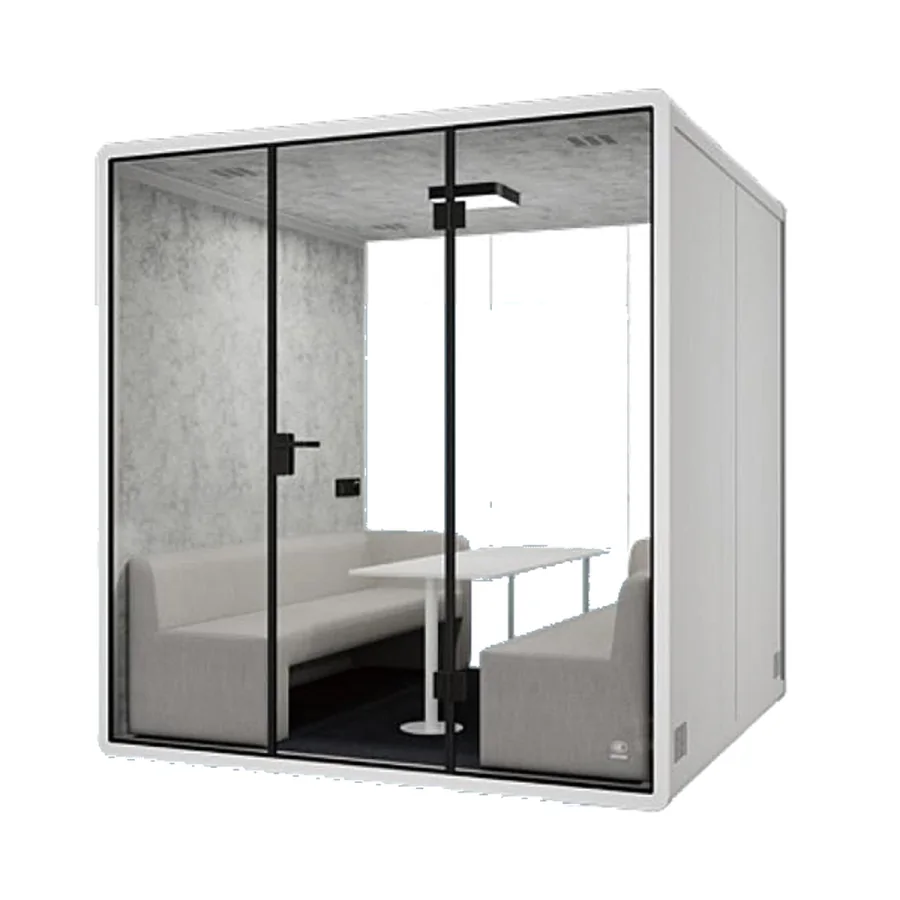

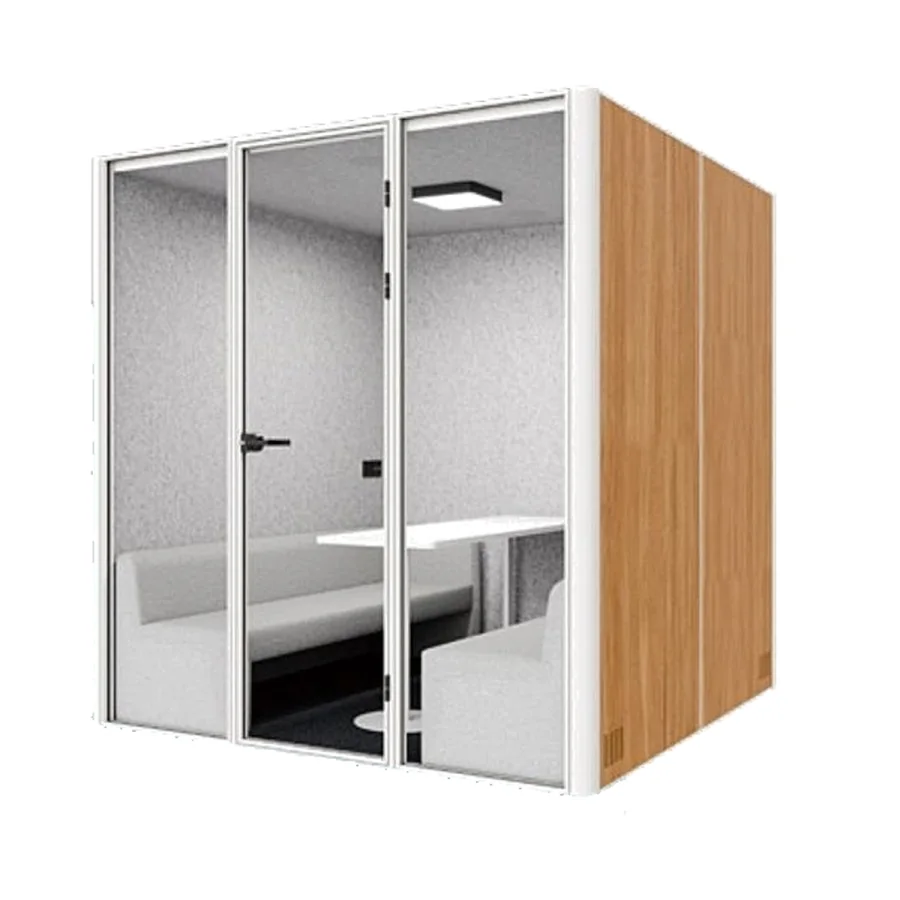

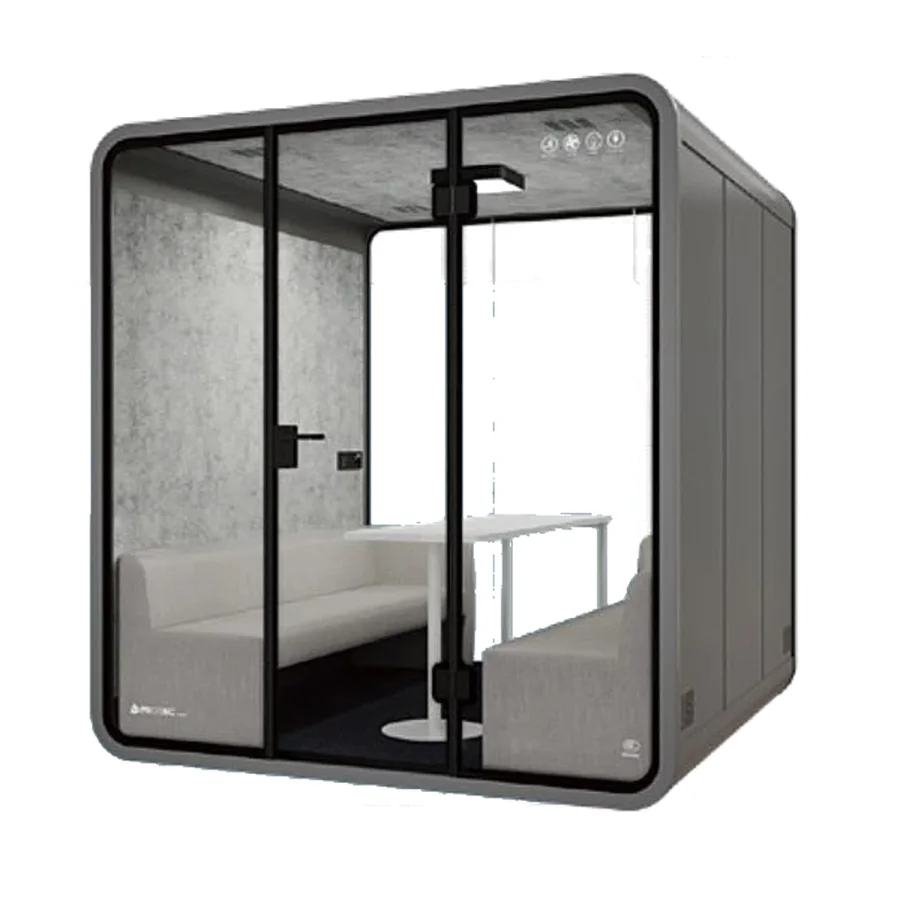

Model XL — Large Room · 6 people

The largest cabin — longer sessions for bigger groups.

Best for: Chatting · Office · Recording · Drum practice · Live streaming · Smoking · Exam · Sleeping

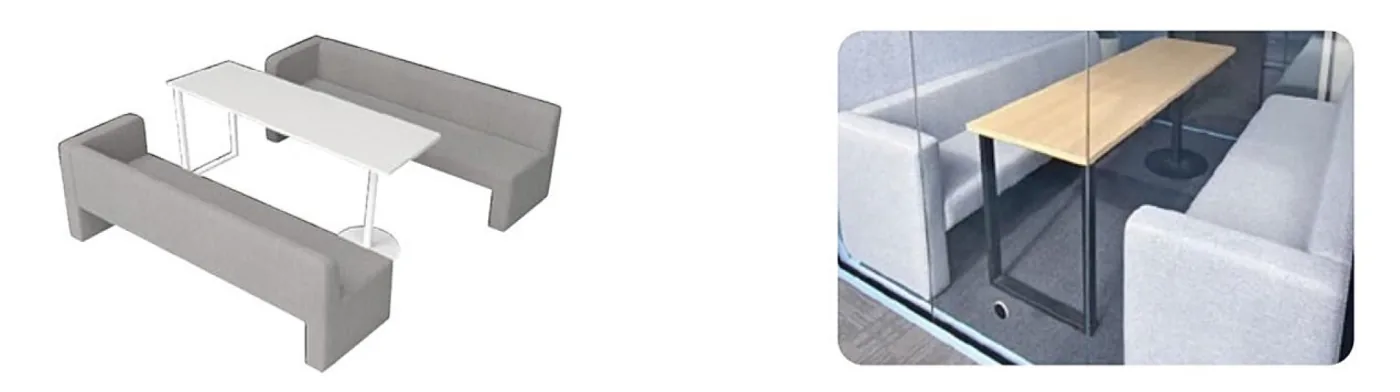

Furniture: Table + 2 sofas (shown installed)

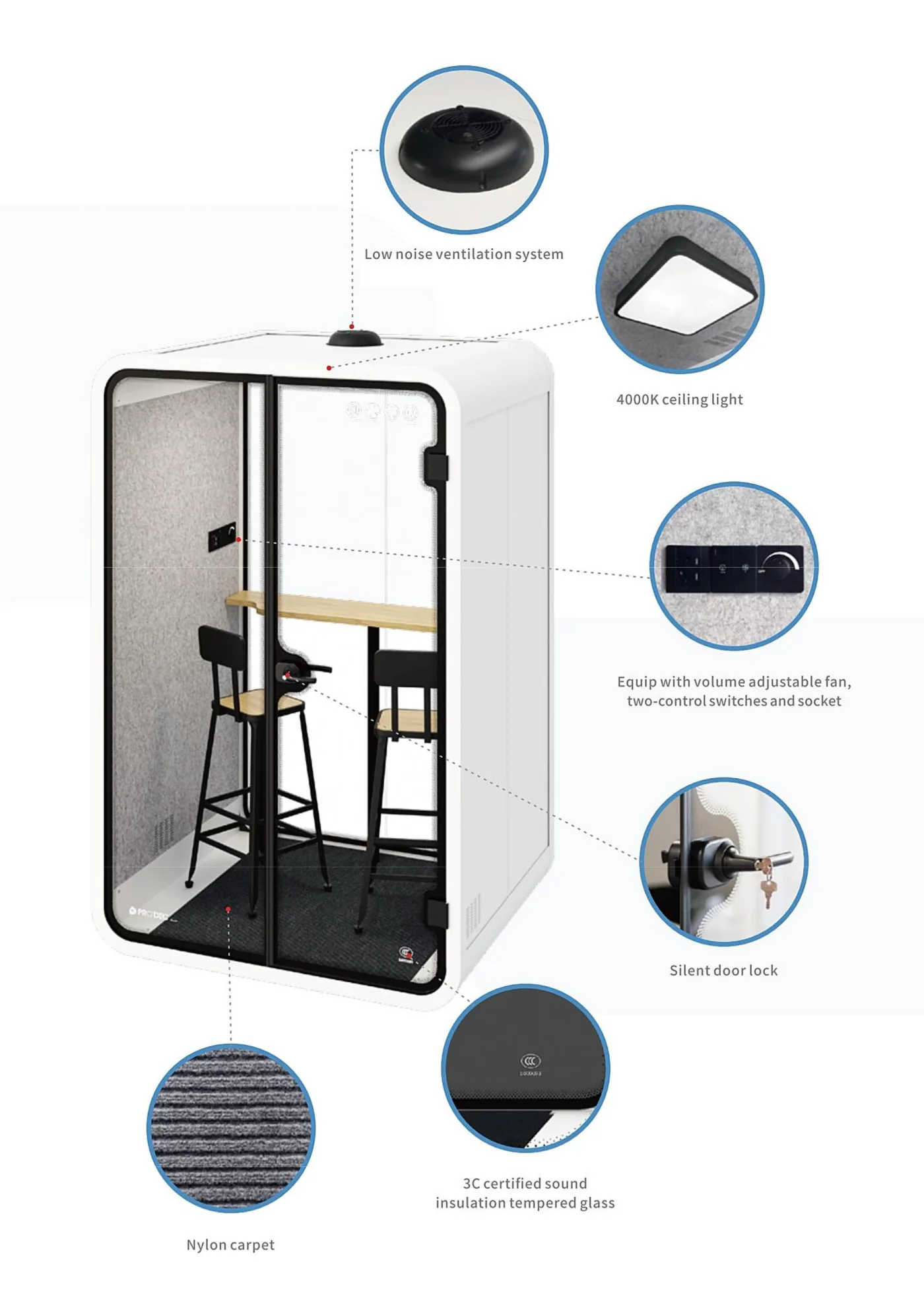

Engineered to be quiet — what’s inside

• Sound insulation — 30 dB (±5 dB) · 0.25 s reverb. A 38 mm double-layer aluminum honeycomb panel, faced with high-density damping felt and lined with acoustic materials — quiet gets in, noise stays out.
• Fresh air in 2 minutes — low-noise ventilation. A multi-layer sound barrier wraps the ventilation tunnel, cutting fan noise while fully refreshing the air inside every two minutes — it never gets stuffy.
• LED lighting — 150 LX · 4000 K. A 4000 K ceiling lamp covers everyday use; scene lighting is customizable and a backup power supply can be fitted inside the booth.
• Power & USB — 100–240 V · 12 V-USB. Rated 100–240 V / 50–60 Hz with a 12 V-USB socket and a volume-adjustable fan dial. Two switches run the light and the exhaust fan separately; 1.5 m cord, up to 3 m.

Also included: Low-noise fan · Silent door lock · 3C certified tempered glass · Nylon carpet floor

Eight colors to choose

Four finishes on every series — Raw White, Grass Green, Wood Grain and Dark Grey; the PC series adds four more. Desktops come in wood grain or white.

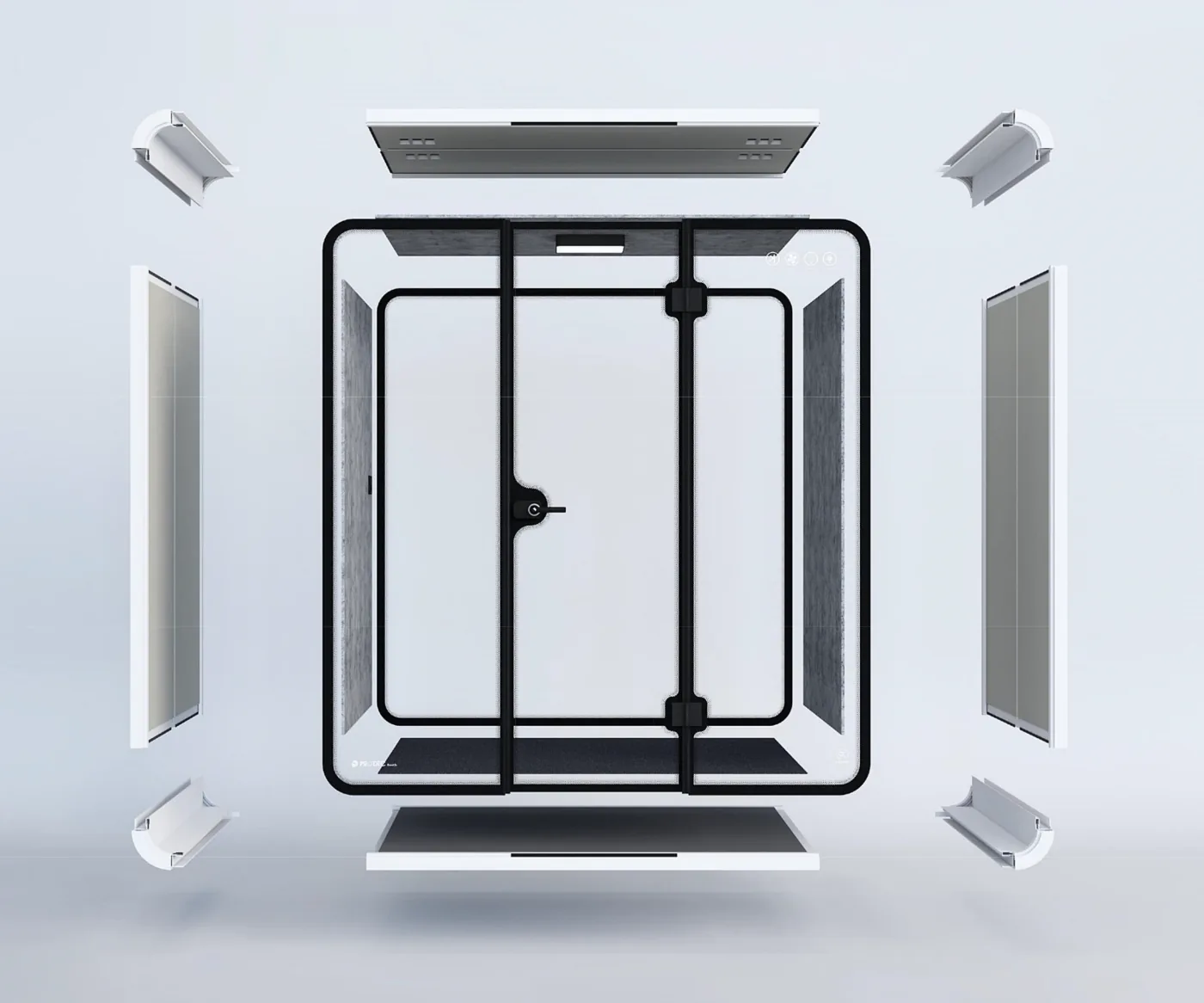

Assembled in two hours

The booth ships flat as panels and profiles and clicks together on site — a full build in as little as two hours. It moves with your team and takes apart just as fast.

Application scenarios

• Phone calls and interviews
• Meeting pods and focus work
• Live streaming and recording
• Instrument training and education
• Team rooms, exams and study
